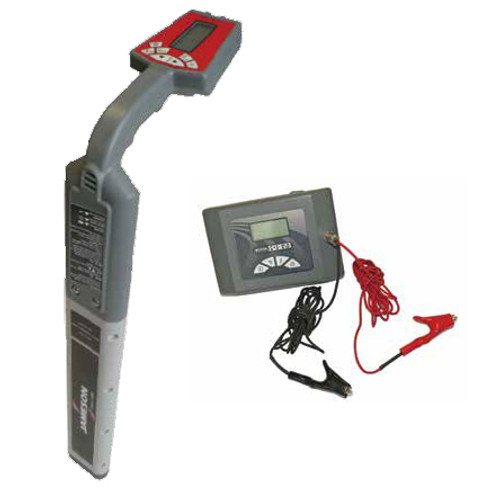

RECEIVER SPECIFICATIONS:
Ergonomic design for one-hand operation and highly visible display. Features depth indication with push of a button and back-lit LCD display. Locate any energized conductive path - iron, steel and copper water lines, gas lines, tracer wire by plastic pipe, telephone/TV cables, copper and aluminum wire, conduit, power lines and Duct Hunter Traceable Rodders.
- 4 active frequencies: 512 Hz, 8 kHz, 33kHz, 82 kHz.
- 2 passive frequencies: 60 Hz power and RF
- Operating Modes: Peak, null and sonde
- Includes case, manual, conductive clips, batteries.
TRANSMITTER SPECIFICATIONS:
Digital transmitter energizes conductive paths and supports Jameson?s receivers. Includes low frequencies for direct connect long runs, higher frequencies for tracing Duct Hunter rod in plastic pipes or inductive modes. Lightweight unit features easy-to-read high contrast LCD screen. Includes carrying case, manual, batteries, ground spike and wire leads.
Active frequencies: 512 Hz, 8 KHz, 33KHz and 82 KHz. 1 Watt Max.
Height [in]:
10
Length [in]:
10
Width [in]:
10
Shipping Method:
Parcel
Unit of Measure:
EA.
Units Per Package:
1
Weight [lb]:
18.000000
